Ran into a weird problem, when an AWS EC2 instance was replaced on every Terraform run.

The aws_instance resource

The EC2 instance is built using Terraform. The "aws_instance" module from Hashicorp is used in this situation and looks pretty straightforward and not too complicated:

resource "aws_instance" "onl-varnish01-t" {
  ami = "ami-02003f9f0fde924ea"
  instance_type = "t3.micro"
  subnet_id     = "subnet-xxxxxxxxxxxxxxxxxx"
  security_groups = [aws_security_group.varnish_ec2_sg.id]
  key_name      = aws_key_pair.ck2025.key_name

  tags = {
    Name = "onl-varnish01-t"
    Role = "varnish"
  }
}

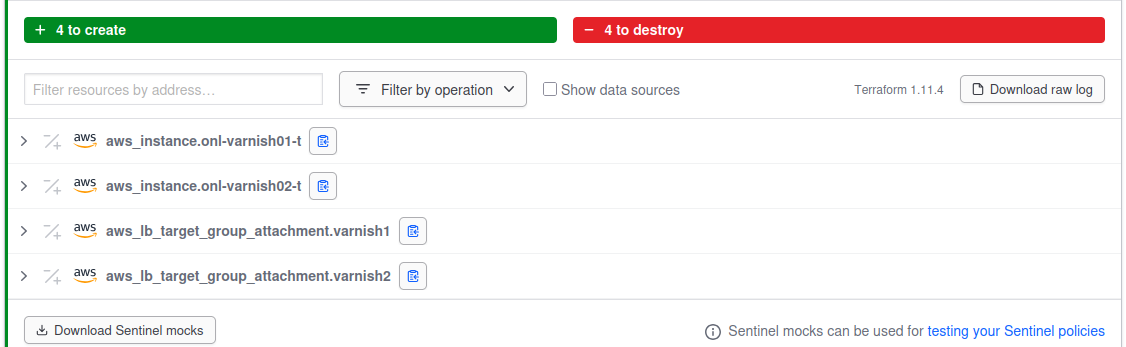

But on every terraform plan I saw that the instance(s) would be destroyed and re-created from scratch.

Note: This is using the HCP Platform (formerly known as Terraform Cloud).

security_groups forces replacement

A deeper look into the planned changes showed multiple changes of the EC2 instance (although there was no change in the code). One change caught my eye:

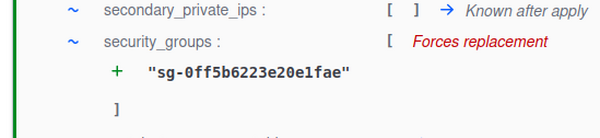

The security_groups change had an additional description: Forces replacement.

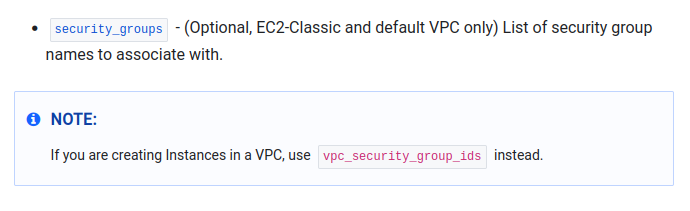

After an excellent hint from Thomas Weiss, a Terraform expert I'm in contact with for this project, it turned out to be a problem with security_groups used in the resource. The documentation states:

 If you are creating Instances in a VPC, use vpc_security_group_ids instead.

Well, that's the case here. I have an existing VPC and I want to create instances using the existing VPC.

Fix with vpc_security_group_ids

According to this information, I replaced security_groups with vpc_security_group_ids:

resource "aws_instance" "onl-varnish01-t" {
  ami = "ami-02003f9f0fde924ea"
  instance_type = "t3.micro"
  subnet_id     = "subnet-xxxxxxxxxxxxxxxxxx"
  vpc_security_group_ids = [aws_security_group.varnish_ec2_sg.id]
  key_name      = aws_key_pair.ck2025.key_name

  tags = {
    Name = "onl-varnish01-t"
    Role = "varnish"
  }
}

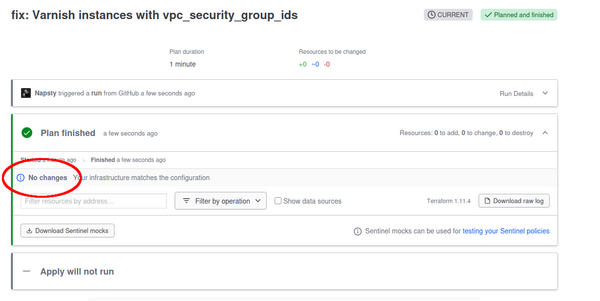

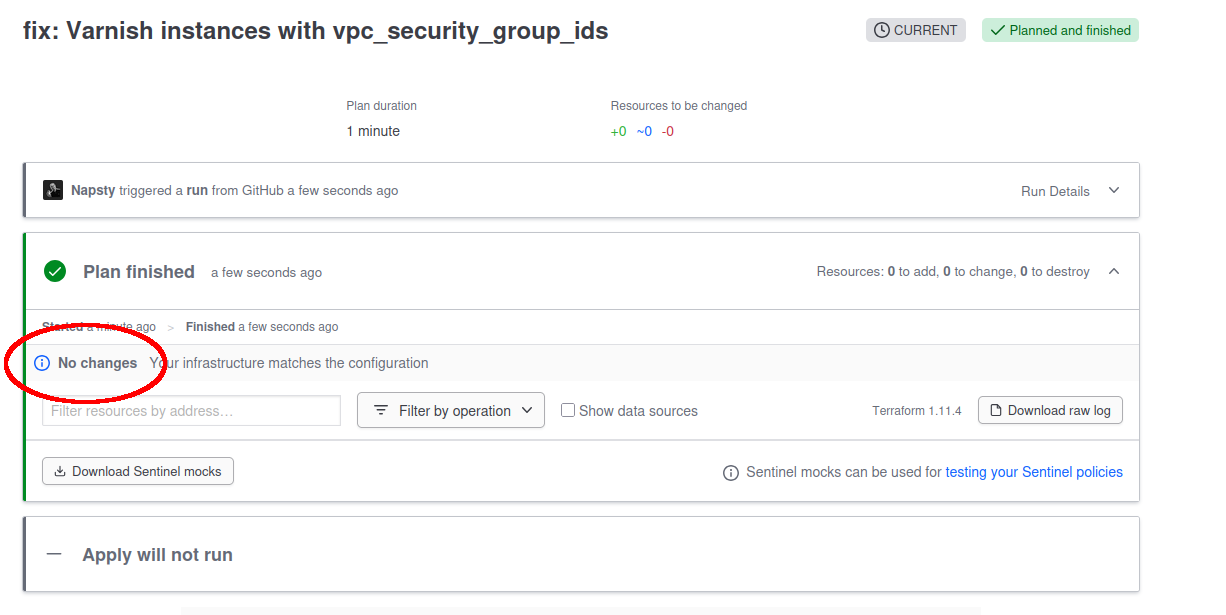

After another terraform plan this seemed to work as it should: No changes detected (as the EC2 instances were already created in a previous run):

Now the question arises, why did I use security_groups instead of vpc_security_group_ids in the aws_instance resource?

As Terraform is rather new for me (I've known what it is for a long time, but never actually got to work with it), I used Grok AI to help me create a TF file with the relevant AWS resources. And Grok's example contained the aws_instance resource - with the security_groups option. Grok also seemed unaware that this situation might cause a replacement of the existing EC2 instance(s). When I added this hint, Grok explained this with changes in the code - which didn't happen.

This whole situation is a pretty good real life example on AI usage: Good ideas and very helpful input (especially for previously unknown topic to the human), but always verify with an expert in that field.

Add a comment

Show form to leave a comment

Comments (newest first)

Mike Anderson from Florida wrote on Sep 3rd, 2025:

Spot-on article! I’ve been bitten by that exact Terraform behavior before—security_groups silently locks you into replacement cycles in a VPC. This post saved me from repeating it elsewhere. And the AI caveat is a nice, timely reminder for us all.

---
