netfilter-persistant iptables-restore error due to missing ipset

Written by Claudio Kuenzler - 0 comments

Published on December 2nd 2025 - Listed in Linux Systemd Security

---

If you use Knocknoc to secure your SSH server with MFA authentication, you might run into a similar problem as me, when iptables-restore didn't restore the persistent iptables rules after a reboot.

Allow IP addresses listed in ipset

Knocknoc uses scripts (knockers) on an agent server. The Knocknoc agent runs on the target server - in my case the SSH server. There are several ways how to secure and integrate Knocknoc. One of the easiest ways is to use pre-defined ipset lists:

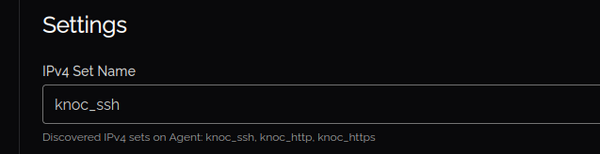

The listed ipsets are defined in /opt/knocknoc-agent/etc/ipset.list:

root@sshserver:~# cat /opt/knocknoc-agent/etc/ipset.list
knoc_ssh
knoc_http
knoc_https

These ipsets are created using the create-ipsets service:

root@sshserver:~# systemctl restart create-ipsets
root@sshserver:~# ipset -L | grep Name
Name: knoc_ssh
Name: knoc_ssh_v6
Name: knoc_http
Name: knoc_http_v6
Name: knoc_https
Name: knoc_https_v6

With the right local firewall rule, we can now tell the iptables (Kernel) firewall to allow SSH connections from IP addresses inside the knoc_ssh ipset list.

root@sshserver:~# iptables -A INPUT -i eth0 -p tcp --dport 22 -m set --match-set knoc_ssh src -j ACCEPT
root@sshserver:~# iptables -A INPUT -i eth0 -p tcp --dport 22 -m state --state NEW,ESTABLISHED,RELATED -j DROP

This works like a charm. Once a user successfully authenticates against the Knocknoc server, the relevant "Knoc" (connection to SSH server) is granted. Which means: In the background the Knocknoc agent on the SSH server received an information to add the user's IP address to the "knock_ssh" ipset list.

iptables-restore error: Set knoc_ssh doesn't exist

After a reboot I noticed that the firewall rules were not automatically loaded, even with the iptables-persistent package installed.

A closer look at the status of the iptables service showed why:

Dec 02 20:57:51 sshserver systemd[1]: Starting netfilter-persistent.service - netfilter persistent configuration...
Dec 02 20:57:51 sshserver netfilter-persistent[148]: run-parts: executing /usr/share/netfilter-persistent/plugins.d/15-ip4tables start
Dec 02 20:57:51 sshserver netfilter-persistent[151]: iptables-restore v1.8.9 (nf_tables): Set knoc_ssh doesn't exist.
Dec 02 20:57:51 sshserver netfilter-persistent[151]: Error occurred at line: 9
Dec 02 20:57:51 sshserver netfilter-persistent[151]: Try `iptables-restore -h' or 'iptables-restore --help' for more information.
Dec 02 20:57:51 sshserver netfilter-persistent[150]: Error: IPv4 rules failed test load. New rules NOT loaded
Dec 02 20:57:51 sshserver netfilter-persistent[148]: run-parts: executing /usr/share/netfilter-persistent/plugins.d/25-ip6tables start
Dec 02 20:57:51 sshserver systemd[1]: Finished netfilter-persistent.service - netfilter persistent configuration.

The iptables service was started before the "knoc_ssh" ipset was created (remember: By the create-ipsets service). And because this ipset was added in the persistent iptables rules (/etc/iptables/rules.v4), the iptables-restore command failed.

Fix it with a Systemd service dependency

Now that we know that the iptables service should start AFTER the create-ipsets service, we can create a Systemd service dependency (After):

root@sshserver:~# mkdir -p /etc/systemd/system/iptables.service.d/
root@sshserver:~# vi /etc/systemd/system/iptables.service.d/knocknoc.conf
root@sshserver:~# cat /etc/systemd/system/iptables.service.d/knocknoc.conf
[Unit]
After=create-ipsets.service

Now the SSH server correctly restores the persistent iptables rules after a reboot, as create-ipsets service is started first and creates the mentioned ipsets.
