Install Linux Mint 18.3 on software raid (mdraid) device
Saturday - May 26th 2018 - by - (0 comments)

When I re-vamped my computer (bought in 2011) a few days ago, I replaced the two internal 750GB hard drives with three SSD's.

  • Drive 1 (/dev/sda) 500GB Samsung 850 Evo
  • Drive 2 (/dev/sdb) 500GB Samsung 850 Evo
  • Drive 3 (/dev/sdc) 120GB ADATA SSD S510

I wanted to use both Samsung drives as a raid-1 for my main installation, Linux Mint 18.3.

The standalone SSD would be used for a Windows 7 installation for dual booting.

When I launched the Linux Mint 18.3 installation, I couldn't find any options to create software raid. So I created them manually (mdadm...) and restarted the installer. At the end of the installation the installer asks to reboot. That's what I did. Just to come to the grub loader and it coudln't find any operating system. Great :-/

After some try'n'err, I finally got to a way which works. If you want to install Linux Mint 18.3 on a software raid, follow these steps. Make sure you are using the correct device names, in my case they were /dev/sda and /dev/sdb.

1) Create the partitions on /dev/sda

I chose a very simple approach here with two partitions. The main partition almost fills up the whole disk, only leaving 4GB left for the second partition (swap).

mint ~ # sfdisk -l /dev/sda
Disk /dev/sda: 465.8 GiB, 500107862016 bytes, 976773168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x4f1db047

Device     Boot     Start       End   Sectors   Size Id Type
/dev/sda1  *         2048 968384511 968382464 461.8G 83 Linux
/dev/sda2       968384512 976773119   8388608     4G 82 Linux swap / Solaris

2) Copy the partition table from SDA to SDB

The following command dumps (-d) the partition table from /dev/sda and inserts it into /dev/sdb:

mint ~ # sfdisk -d /dev/sda | sfdisk /dev/sdb
Checking that no-one is using this disk right now ... OK

Disk /dev/sdb: 465.8 GiB, 500107862016 bytes, 976773168 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x16a9c579

Old situation:

>>> Script header accepted.
>>> Script header accepted.
>>> Script header accepted.
>>> Script header accepted.
>>> Created a new DOS disklabel with disk identifier 0x4f1db047.
Created a new partition 1 of type 'Linux' and of size 461.8 GiB.
/dev/sdb2: Created a new partition 2 of type 'Linux swap / Solaris' and of size 4 GiB.
/dev/sdb3:
New situation:

Device     Boot     Start       End   Sectors   Size Id Type
/dev/sdb1  *         2048 968384511 968382464 461.8G 83 Linux
/dev/sdb2       968384512 976773119   8388608     4G 82 Linux swap / Solaris

The partition table has been altered.
Calling ioctl() to re-read partition table.
Syncing disks.

3) Create the raid devices

First I created /dev/md0, which will hold the Linux Mint installation:

mint ~ # mdadm --create /dev/md0 --level=1 --raid-devices=2 /dev/sda1 /dev/sdb1
mdadm: /dev/sda1 appears to contain an ext2fs file system
       size=484191232K  mtime=Fri May 25 15:31:47 2018
mdadm: Note: this array has metadata at the start and
    may not be suitable as a boot device.  If you plan to
    store '/boot' on this device please ensure that
    your boot-loader understands md/v1.x metadata, or use
    --metadata=0.90
mdadm: /dev/sdb1 appears to be part of a raid array:
       level=raid1 devices=2 ctime=Fri May 25 12:50:09 2018
Continue creating array? y
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md0 started.

Then create /dev/md1 which will be used as swap partition:

mint ~ # mdadm --create /dev/md1 --level=1 --raid-devices=2 /dev/sda2 /dev/sdb2
mdadm: Note: this array has metadata at the start and
    may not be suitable as a boot device.  If you plan to
    store '/boot' on this device please ensure that
    your boot-loader understands md/v1.x metadata, or use
    --metadata=0.90
mdadm: /dev/sdb2 appears to be part of a raid array:
       level=raid1 devices=2 ctime=Fri May 25 12:50:23 2018
Continue creating array? y
mdadm: Defaulting to version 1.2 metadata
mdadm: array /dev/md1 started.

4) Wait for the sync to be completed

mint ~ # cat /proc/mdstat
Personalities : [raid1]
md1 : active raid1 sdb2[1] sda2[0]
      4190208 blocks super 1.2 [2/2] [UU]
          resync=DELAYED

md0 : active raid1 sdb1[1] sda1[0]
      484060160 blocks super 1.2 [2/2] [UU]
      [>....................]  resync =  0.7% (3421824/484060160) finish=39.7min speed=201283K/sec
      bitmap: 4/4 pages [16KB], 65536KB chunk

unused devices:

Yes, patience you must have.

mint ~ # cat /proc/mdstat
Personalities : [raid1]
md1 : active raid1 sdb2[1] sda2[0]
      4190208 blocks super 1.2 [2/2] [UU]

md0 : active raid1 sdb1[1] sda1[0]
      484060160 blocks super 1.2 [2/2] [UU]
      bitmap: 0/4 pages [0KB], 65536KB chunk

unused devices:

5) Format the raid device /dev/md0

I will be using an ext4 filesystem, so:

mint ~ # mkfs.ext4 /dev/md0
mke2fs 1.42.13 (17-May-2015)
Discarding device blocks: done
Creating filesystem with 121015040 4k blocks and 30261248 inodes
Filesystem UUID: 8f662d46-4759-4b81-b879-eb60dd643f41
Superblock backups stored on blocks:
    32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
    4096000, 7962624, 11239424, 20480000, 23887872, 71663616, 78675968,
    102400000

Allocating group tables: done
Writing inode tables: done
Creating journal (32768 blocks): done
Writing superblocks and filesystem accounting information: done

6) Launch the installer

But launch it from the command line:

mint ~ # ubiquity -b

7) In the installer...

When the installer asks how about the installation type, select "Something else":

Linux Mint Install Something Else

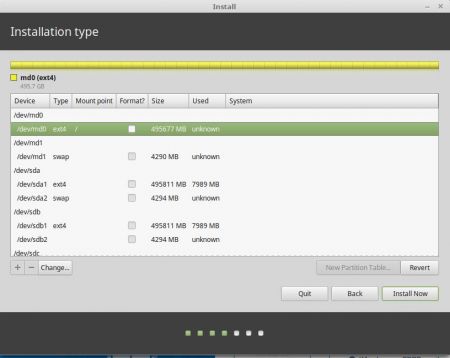

The raid devices /dev/md0 (with ext4 as type) and /dev/md1 (with swap as type) should be shown in the list:

Linux Mint 18.3 partitions

Double-click on the row /dev/md0 with the values and select use the partition as ext4 mounted as /.

Double-click on the row /dev/md1 with the values and select use the partition as swap.

Important: Make sure the other swap partitions (from devices SDA and SDB) are set to "do not use this partition". Otherwise the installer will fail and somehow crashes...

Make sure you select the row /dev/md0 with the values, then click on "Install now":

Linux Mint

8) At the end of the installation...

Very important: DO NOT click on "Restart Now". Click on "Continue Testing" instead. Otherwise you will have the same failing boot effect as I described at the begin of this article.

Linux Mint installation completed

9) Prepare the Linux Mint installation to chroot into

Launch a terminal window and mount /dev/md0:

mint ~ # mount /dev/md0 /mnt

Also make sure you are mounting sys and proc file systems as bind mounts into /mnt:

mint ~ # for i in /dev /dev/pts /sys /proc; do mount --bind $i /mnt/$i; done

In case the resolv.conf inside the Linux Mint installation is empty, enter a nameserver manually:

mint ~ # cat /mnt/etc/resolv.conf
mint ~ # echo "nameserver 1.1.1.1" > /mnt/etc/resolv.conf

Now chroot into your Linux Mint installation, mounted as /mnt:

mint ~ # chroot /mnt

10) Fix grub in the terminal

Now install the package mdadm into the Linux Mint installation. I will show the full output here:

mint / # apt-get install mdadm
Reading package lists... Done
Building dependency tree
Reading state information... Done
Suggested packages:
  default-mta | mail-transport-agent dracut-core
The following NEW packages will be installed:
  mdadm
0 upgraded, 1 newly installed, 0 to remove and 326 not upgraded.
Need to get 394 kB of archives.
After this operation, 1,208 kB of additional disk space will be used.
Get:1 http://archive.ubuntu.com/ubuntu xenial-updates/main amd64 mdadm amd64 3.3-2ubuntu7.6 [394 kB]
Fetched 394 kB in 0s (1,491 kB/s)
Preconfiguring packages ...
Selecting previously unselected package mdadm.
(Reading database ... 199757 files and directories currently installed.)
Preparing to unpack .../mdadm_3.3-2ubuntu7.6_amd64.deb ...
Unpacking mdadm (3.3-2ubuntu7.6) ...
Processing triggers for systemd (229-4ubuntu21) ...
Processing triggers for ureadahead (0.100.0-19) ...
Processing triggers for doc-base (0.10.7) ...
Processing 4 added doc-base files...
Registering documents with scrollkeeper...
Processing triggers for man-db (2.7.5-1) ...
Setting up mdadm (3.3-2ubuntu7.6) ...
Generating mdadm.conf... done.
update-initramfs: deferring update (trigger activated)
Generating grub configuration file ...
Warning: Setting GRUB_TIMEOUT to a non-zero value when GRUB_HIDDEN_TIMEOUT is set is no longer supported.
Found linux image: /boot/vmlinuz-4.10.0-38-generic
Found initrd image: /boot/initrd.img-4.10.0-38-generic
Found memtest86+ image: /boot/memtest86+.elf
Found memtest86+ image: /boot/memtest86+.bin
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
ERROR: isw: Could not find disk /dev/sdd in the metadata
File descriptor 3 (pipe:[1799227]) leaked on lvs invocation. Parent PID 29155: /bin/sh
  /run/lvm/lvmetad.socket: connect failed: No such file or directory
  WARNING: Failed to connect to lvmetad. Falling back to internal scanning.
Found Windows 7 (loader) on /dev/sdd1
done
Running in chroot, ignoring request.
update-rc.d: warning: start and stop actions are no longer supported; falling back to defaults
Processing triggers for systemd (229-4ubuntu21) ...
Processing triggers for ureadahead (0.100.0-19) ...
Processing triggers for initramfs-tools (0.122ubuntu8.9) ...
update-initramfs: Generating /boot/initrd.img-4.10.0-38-generic
Warning: No support for locale: en_US.utf8

You can ignore the errors about drive /dev/sdd (it was an additional USB drive, nothing to do with the installation).

Very important here: When mdadm was installed into the Linux Mint installation, a new Kernel initramfs was created and also the grub config was created. Also the mdadm.conf was written. Obviously this step (installing mdadm into the Linux Mint installation and therefore self-awareness of being a Linux raid) was missed by the installer...

11) Verification

After mdadm was installed, a bunch of necessary files were created. Let's start with grub:

mint / # ll /boot/grub/
total 2368
drwxr-xr-x 2 root root    4096 May 26 08:08 ./
drwxr-xr-x 3 root root    4096 May 26 08:08 ../
-rw-r--r-- 1 root root     712 Nov 24  2017 gfxblacklist.txt
-r--r--r-- 1 root root    9734 May 26 08:08 grub.cfg
-rw-r--r-- 1 root root 2398585 Nov 24  2017 unicode.pf2

grub.cfg was only created once mdadm was installed. No wonder, a boot was not possible without this manual fix.

What does it contain?

mint / # cat /boot/grub/grub.cfg
#
# DO NOT EDIT THIS FILE
#
# It is automatically generated by grub-mkconfig using templates
# from /etc/grub.d and settings from /etc/default/grub
#
[...]
insmod part_msdos
insmod part_msdos
insmod diskfilter
insmod mdraid1x
insmod ext2
set root='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'
if [ x$feature_platform_search_hint = xy ]; then
  search --no-floppy --fs-uuid --set=root --hint='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'  8f662d46-4759-4b81-b879-eb60dd643f41
else
  search --no-floppy --fs-uuid --set=root 8f662d46-4759-4b81-b879-eb60dd643f41
fi
    font="/usr/share/grub/unicode.pf2"
fi
[...]
menuentry 'Linux Mint 18.3 Cinnamon 64-bit' --class ubuntu --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-simple-8f662d46-4759-4b81-b879-eb60dd643f41' {
    recordfail
    load_video
    gfxmode $linux_gfx_mode
    insmod gzio
    if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
    insmod part_msdos
    insmod part_msdos
    insmod diskfilter
    insmod mdraid1x
    insmod ext2
    set root='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'
    if [ x$feature_platform_search_hint = xy ]; then
      search --no-floppy --fs-uuid --set=root --hint='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'  8f662d46-4759-4b81-b879-eb60dd643f41
    else
      search --no-floppy --fs-uuid --set=root 8f662d46-4759-4b81-b879-eb60dd643f41
    fi
        linux    /boot/vmlinuz-4.10.0-38-generic root=UUID=8f662d46-4759-4b81-b879-eb60dd643f41 ro  quiet splash $vt_handoff
    initrd    /boot/initrd.img-4.10.0-38-generic
}
submenu 'Advanced options for Linux Mint 18.3 Cinnamon 64-bit' $menuentry_id_option 'gnulinux-advanced-8f662d46-4759-4b81-b879-eb60dd643f41' {
    menuentry 'Linux Mint 18.3 Cinnamon 64-bit, with Linux 4.10.0-38-generic' --class ubuntu --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-4.10.0-38-generic-advanced-8f662d46-4759-4b81-b879-eb60dd643f41' {
        recordfail
        load_video
        gfxmode $linux_gfx_mode
        insmod gzio
        if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
        insmod part_msdos
        insmod part_msdos
        insmod diskfilter
        insmod mdraid1x
        insmod ext2
        set root='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'
        if [ x$feature_platform_search_hint = xy ]; then
          search --no-floppy --fs-uuid --set=root --hint='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'  8f662d46-4759-4b81-b879-eb60dd643f41
        else
          search --no-floppy --fs-uuid --set=root 8f662d46-4759-4b81-b879-eb60dd643f41
        fi
        echo    'Loading Linux 4.10.0-38-generic ...'
            linux    /boot/vmlinuz-4.10.0-38-generic root=UUID=8f662d46-4759-4b81-b879-eb60dd643f41 ro  quiet splash $vt_handoff
        echo    'Loading initial ramdisk ...'
        initrd    /boot/initrd.img-4.10.0-38-generic
    }
    menuentry 'Linux Mint 18.3 Cinnamon 64-bit, with Linux 4.10.0-38-generic (upstart)' --class ubuntu --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-4.10.0-38-generic-init-upstart-8f662d46-4759-4b81-b879-eb60dd643f41' {
        recordfail
        load_video
        gfxmode $linux_gfx_mode
        insmod gzio
        if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
        insmod part_msdos
        insmod part_msdos
        insmod diskfilter
        insmod mdraid1x
        insmod ext2
        set root='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'
        if [ x$feature_platform_search_hint = xy ]; then
          search --no-floppy --fs-uuid --set=root --hint='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'  8f662d46-4759-4b81-b879-eb60dd643f41
        else
          search --no-floppy --fs-uuid --set=root 8f662d46-4759-4b81-b879-eb60dd643f41
        fi
        echo    'Loading Linux 4.10.0-38-generic ...'
            linux    /boot/vmlinuz-4.10.0-38-generic root=UUID=8f662d46-4759-4b81-b879-eb60dd643f41 ro  quiet splash $vt_handoff init=/sbin/upstart
        echo    'Loading initial ramdisk ...'
        initrd    /boot/initrd.img-4.10.0-38-generic
    }
    menuentry 'Linux Mint 18.3 Cinnamon 64-bit, with Linux 4.10.0-38-generic (recovery mode)' --class ubuntu --class gnu-linux --class gnu --class os $menuentry_id_option 'gnulinux-4.10.0-38-generic-recovery-8f662d46-4759-4b81-b879-eb60dd643f41' {
        recordfail
        load_video
        insmod gzio
        if [ x$grub_platform = xxen ]; then insmod xzio; insmod lzopio; fi
        insmod part_msdos
        insmod part_msdos
        insmod diskfilter
        insmod mdraid1x
        insmod ext2
        set root='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'
        if [ x$feature_platform_search_hint = xy ]; then
          search --no-floppy --fs-uuid --set=root --hint='mduuid/650864013e2d41cf1f2acfeafc5c2bd7'  8f662d46-4759-4b81-b879-eb60dd643f41
        else
          search --no-floppy --fs-uuid --set=root 8f662d46-4759-4b81-b879-eb60dd643f41
        fi
        echo    'Loading Linux 4.10.0-38-generic ...'
            linux    /boot/vmlinuz-4.10.0-38-generic root=UUID=8f662d46-4759-4b81-b879-eb60dd643f41 ro recovery nomodeset
        echo    'Loading initial ramdisk ...'
        initrd    /boot/initrd.img-4.10.0-38-generic
    }
}

### END /etc/grub.d/10_linux ###
[...]

As root device (set root) an uuid using mdraid (mduuid/650864013e2d41cf1f2acfeafc5c2bd7) was used. Let's doublecheck that with the entries in mdadm.conf:

mint / # cat /etc/mdadm/mdadm.conf
# mdadm.conf
#
# Please refer to mdadm.conf(5) for information about this file.
#

# by default (built-in), scan all partitions (/proc/partitions) and all
# containers for MD superblocks. alternatively, specify devices to scan, using
# wildcards if desired.
#DEVICE partitions containers

# auto-create devices with Debian standard permissions
CREATE owner=root group=disk mode=0660 auto=yes

# automatically tag new arrays as belonging to the local system
HOMEHOST

# instruct the monitoring daemon where to send mail alerts
MAILADDR root

# definitions of existing MD arrays
ARRAY /dev/md/0  metadata=1.2 UUID=65086401:3e2d41cf:1f2acfea:fc5c2bd7 name=mint:0
ARRAY /dev/md/1  metadata=1.2 UUID=ad052a0a:eb1f9198:ec842848:215b650b name=mint:1
ARRAY metadata=imsm UUID=0b24ad7f:9b251541:a98a3748:f6333faa
ARRAY /dev/md/RAID1 container=0b24ad7f:9b251541:a98a3748:f6333faa member=0 UUID=aaa62640:f0d57fc8:6c097c8f:547b9c8f

# This file was auto-generated on Sat, 26 May 2018 08:08:42 +0200
# by mkconf $Id$

The UUID for /dev/md/0 looks familiar ;-). It's the same UUID as used in the grub config. So far so good.

Let's check /etc/fstab, too:

mint / # cat /etc/fstab
# /etc/fstab: static file system information.
#
# Use 'blkid' to print the universally unique identifier for a
# device; this may be used with UUID= as a more robust way to name devices
# that works even if disks are added and removed. See fstab(5).
#
#
# / was on /dev/md0 during installation
UUID=8f662d46-4759-4b81-b879-eb60dd643f41 /               ext4    errors=remount-ro 0       1
# swap was on /dev/md1 during installation
UUID=b8277371-01fb-4aa3-bec1-9c0a4295deea none            swap    sw              0       0

Here another UUID is used (because it's a device UUID, not a mdraid UUID). We can verify these by checking in /dev/disk/by-uuid:

mint / # ls -la /dev/disk/by-uuid/
total 0
drwxr-xr-x 2 root root 180 May 26 08:05 .
drwxr-xr-x 6 root root 120 May 25 18:59 ..
lrwxrwxrwx 1 root root  10 May 26 08:05 101EC9371EC9171E -> ../../sdd2
lrwxrwxrwx 1 root root  10 May 26 08:05 1EF881D5F881AB99 -> ../../sdc1
lrwxrwxrwx 1 root root   9 May 26 08:05 2017-11-24-13-25-42-00 -> ../../sr0
lrwxrwxrwx 1 root root   9 May 26 08:08 8f662d46-4759-4b81-b879-eb60dd643f41 -> ../../md0
lrwxrwxrwx 1 root root   9 May 26 08:08 b8277371-01fb-4aa3-bec1-9c0a4295deea -> ../../md1
lrwxrwxrwx 1 root root  10 May 26 08:05 CEAABB7CAABB601F -> ../../sdd1
lrwxrwxrwx 1 root root  10 May 26 08:05 E646DD2A46DCFBED -> ../../sdd3

Both UUID's used in fstab (for the root partition and for swap) are here.

12) Grub install on the physical drives

Now that everything looks in order, we can install grub to /dev/sda and /dev/sdb.

mint / # grub-install /dev/sda
Installing for i386-pc platform.
Installation finished. No error reported.

mint / # grub-install /dev/sdb
Installing for i386-pc platform.
Installation finished. No error reported.

Very good, no errors.

Now I exited the chroot environment and rebooted the machine.

mint / # exit

mint ~ # reboot

13) Booting

And finally, success: Linux Mint 18.3 now boots from the software raid-1 /dev/md0 device.

Grub

Linux Mint finished booting on software raid

Update June 11th 2018:
After I installed Linux Mint on the raid device, I discovered that Windows 7 (on /dev/sdc) did not boot anymore and failed with the following error:

MBR

BOOTMGR is missing
Press Ctrl+Alt+Del to restart

All attempts to repair the Windows boot with the Windows 7 DVD failed. I had to phyiscally unplug the two Samsung SSD's and then boot from the Windows 7 DVD again.

This time Windows 7 Repair was able to fix the boot loader. Seems Windows 7 repair requires the Windows drive to be discovered as the first drive (/dev/sda) and only then the repair works.

After I was able to boot into my Windows 7 installation on the ADATA SSD again, I replugged the two Samsung SSD's. This made the Windows drive to /dev/sdc again. But with the fixed boot loader, I can now boot into Windows 7 from the Grub menu.



Add a comment

Show form to leave a comment

Comments (newest first):

No comments yet.

Go to Homepage home
Linux Howtos how to's
Monitoring Plugins monitoring plugins
Links links

Valid HTML 4.01 Transitional
Valid CSS!
[Valid RSS]

7153 Days
until Death of Computers
Why?
