Raspberry Pi 3b+, Gigabit PoE switch and PoE splitter: An impossible setup? Nope!

Written by - 0 comments

Published on - Listed in Hardware Linux Network


On my quest to build an environmental sensor using a Raspberry Pi 3b+ board and an Adafruit CCS811 VOC sensor, I stumbled across a couple of challenges. Most of them will be described in a separate article sooner or later, but this time I stumbled across a problem with a PoE (Power over Ethernet) splitter/adapter from DSLRKIT.

Everything looks good - from far away

Before the PoE splitter was bought, the description of the product was of course checked and also the output power verified with the needs of a Raspberry Pi 3b+. Both product description and the outgoing power seemed to match the requirements for the RasPi 3b+.

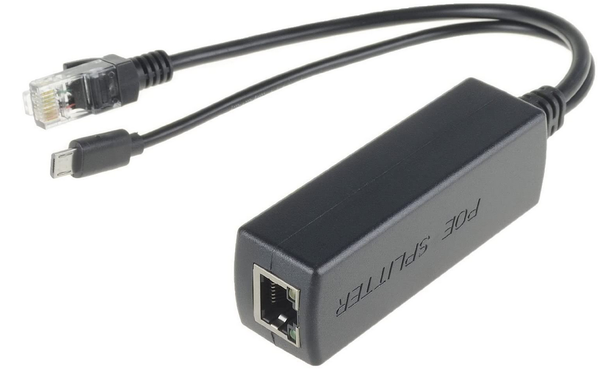

PoE splitter

So far so good.

Power yes - network no

Once the PoE splitter was installed and connected, the Raspberry Pi 3b+ did indeed power up! But I noticed no flashing led on the Raspi's network interface.

A couple of ping checks from my computer confirmed: There's no network link. But why's that?

According to a couple of comments on Amazon this PoE splitter does not work on Raspberry Pi 3b+ boards:

PoE negotiation and power works fine on Raspberry Pi B3+. However, no link negotiation meaning the network connection doesn't work - make the product unusable for raspberry pi 3B+ - User Mirabis

Am Raspi 3B funktioniert der Adapter wie erwartet. Am Rasp 3B+ wird zwar eine stabile Spannungsversorgung erreicht aber ein Netzwerk Linkup erfolgt nicht. - User Sawo

Never give up!

"Should've read the comments before buying" I told myself. But I didn't give up yet. I contacted DSLRKIT, initially to organize a refund. While waiting for an answer from them I did some tests by using a wireless LAN connection instead of a wired connection. Unfortunately this failed due to (most likely) too weak WLAN signal. However I got an interesting answer from DSLRKIT mentioning a 100Mb connection. The current in production PoE switch is a Gbit switch (Trendnet TPE-TG82G). Might there be a compatibility problem between the PoE splitter and the PoE switch?

I took an older PoE switch with 100Mbit ports and tested the connection: It worked, out of the box!

Connected to the Gbit PoE switch again: The same problem: No network link. I'm on to something!

Patience young padawan! Settle to 100Mbit

On the Raspberry Pi side, which runs Raspbian (based on Debian), the ethtool program can be installed and the network interfaces can be manually adjusted to other settings, for example manually setting the interface speed.

pi@raspberrypi:~ $ sudo apt-get install ethtool
pi@raspberrypi:~ $ sudo ethtool -s eth0 speed 100 duplex full

To do this at boot time, the interface speed (and other settings) can also be set in /etc/network/interfaces using the "link-XXXX" options (see /usr/share/doc/ethtool/README.Debian for more details):

pi@raspberrypi:~ $ cat /etc/network/interfaces
# interfaces(5) file used by ifup(8) and ifdown(8)

# Please note that this file is written to be used with dhcpcd
# For static IP, consult /etc/dhcpcd.conf and 'man dhcpcd.conf'

# Include files from /etc/network/interfaces.d:
source-directory /etc/network/interfaces.d

auto eth0
iface eth0 inet static
  address 192.168.15.98
  netmask 255.255.255.0
  network 192.168.15.0
  broadcast 192.168.15.255
  gateway 192.168.15.1
  link-speed 100
  link-duplex full

After a shutdown of the Raspi and a new connect to the PoE splitter, the Raspbery Pi 3b+ booted up - and showed network link! Hurray!
