TVHeadend Mutex Scan Settings for Cablecom and Thurcom (Switzerland)
Tuesday - Dec 6th 2016 - by - (0 comments)

If you're living in Switzerland and you want to configure your TVHeadend settings to scan the Swiss TV proviers Cablecom or Thurcom (region of Wil SG), then you're right here.

It took me some time to finally find the correct mutex settings, but here they are.

Network:

TVHeadend Network Settings Thurcom

Note: According to the Thurcom website, the network ID should be set to 360 if no smartcard is attached.

(First) Mutex:

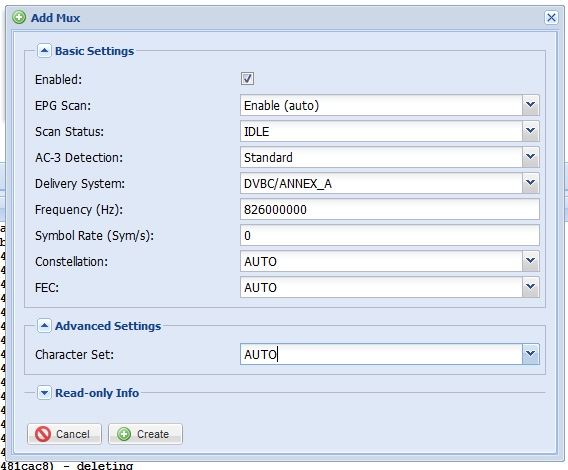

TVHeadend Mutex Mux Thurcom Cablecom

Note: The above mentioned hint tells you to use the frequency 314kHz. In my case this didn't work. I was much more successful with 826kHz and I left the symbol rate at 0.

Then I forced the scan on the network and it got me all the scan results and channels:

TVHeadend Thurcom Mutex Scan

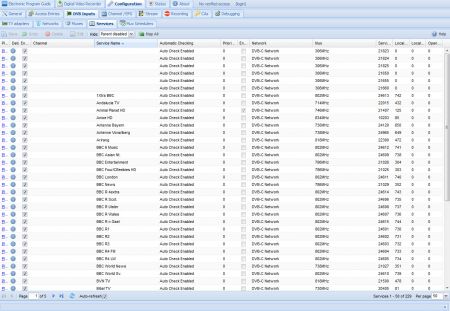

TVHeadend Thurcom Channels Services

Attention if you come across errors like these (scan no data, failed):

2016-12-03 19:01:35.001 mpegts: 314MHz in DVB-C Network - tuning on CXD2837 DVB-C DVB-T/T2 : DVB-C #0
2016-12-03 19:01:35.001 opentv-ausat: registering mux 314MHz in DVB-C Network
2016-12-03 19:01:35.019 subscription: 000B: "scan" subscribing to mux "314MHz", weight: 5, adapter: "CXD2837 DVB-C DVB-T/T2 : DVB-C #0", network: "DVB-C Network", service: "Raw PID Subscription"
2016-12-03 19:01:40.148 mpegts: 314MHz in DVB-C Network - scan no data, failed
2016-12-03 19:01:40.148 subscription: 000B: "scan" unsubscribing
2016-12-03 19:01:40.154 mpegts: 250MHz in DVB-C Network - tuning on CXD2837 DVB-C DVB-T/T2 : DVB-C #0
2016-12-03 19:01:40.154 opentv-ausat: registering mux 250MHz in DVB-C Network
2016-12-03 19:01:40.183 subscription: 000D: "scan" subscribing to mux "250MHz", weight: 5, adapter: "CXD2837 DVB-C DVB-T/T2 : DVB-C #0", network: "DVB-C Network", service: "Raw PID Subscription"
2016-12-03 19:01:41.243 linuxdvb: CXD2837 DVB-C DVB-T/T2 : DVB-C #0 - poll TIMEOUT
2016-12-03 19:01:45.000 mpegts: 250MHz in DVB-C Network - scan no data, failed
2016-12-03 19:01:45.000 subscription: 000D: "scan" unsubscribing
2016-12-03 19:02:12.680 mpegts: 250MHz in DVB-C Network - tuning on CXD2837 DVB-C DVB-T/T2 : DVB-C #0
2016-12-03 19:02:12.680 subscription: 000E: "scan" subscribing to mux "250MHz", weight: 6, adapter: "CXD2837 DVB-C DVB-T/T2 : DVB-C #0", network: "DVB-C Network", service: "Raw PID Subscription"
2016-12-03 19:02:17.000 mpegts: 250MHz in DVB-C Network - scan no data, failed

This is probably due to a defect antenna cable. I hit the problem myself with a several meters long antenna cable still rolled up. Once I switched to a shorter and stretched cable, the errors disappeared.
