Create a persistent data volume from NFS share for Docker containers in Rancher 1.6

Written by - 2 comments

Published on - Listed in Rancher Docker Containers NFS

Almost a year ago I wrote an article how to create a persistant volume in Rancher 2.x from a NFS share. Interestingly this was never requested on our older but still running smoothly in production Rancher 1.x (currently 1.6.26) environment. Until these days.

The approach between Rancher 1.x and 2.x is comparable, yet a little bit different. This is a step by step guide how to connect an existing NFS share to your Rancher 1.x environment, create a persistent volume and mount the volume in the containers.

The NFS Share

So let's make these assumptions: The NFS server runs on, the share (export) is called "v_storytelling_maps_stage".

Preparations on the host

Each Docker/Rancher host (node) needs to be prepared to be able to mount NFS shares. The nfs-common package (in Ubuntu) should cover this.

root@dockerhost1:~# apt-get install nfs-common

Now it's a wise idea to first try and mount the NFS share manually.

root@dockerhost1:~# mount -t nfs /tmp/claudio
Job for rpc-statd.service failed because the control process exited with error code. See "systemctl status rpc-statd.service" and "journalctl -xe" for details.
mount.nfs: rpc.statd is not running but is required for remote locking.
mount.nfs: Either use '-o nolock' to keep locks local, or start statd.
mount.nfs: an incorrect mount option was specified

If you get this error, check out article Mounting NFS export suddenly does not work anymore - blame systemd for a solution.

So once you've solved this, you should be able to mount the share on your Docker host:

root@st-radoi01-t:~# mount -t nfs /tmp/claudio

root@st-radoi01-t:~# mount| grep nfs on /tmp/claudio type nfs (rw,relatime,vers=3,rsize=65536,wsize=65536,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=,mountvers=3,mountport=635,mountproto=udp,local_lock=none,addr=

So far so good. No permission problems, we can proceed and unmount this share again:

root@st-radoi01-t:~# umount /tmp/claudio

Installing Rancher NFS volume plugin

In order to mount NFS shares into containers, a volume plugin is needed. The Rancher NFS plugin from the Rancher Catalog is such a plugin:

Rancher 1.6 NFS Plugin from Catalog

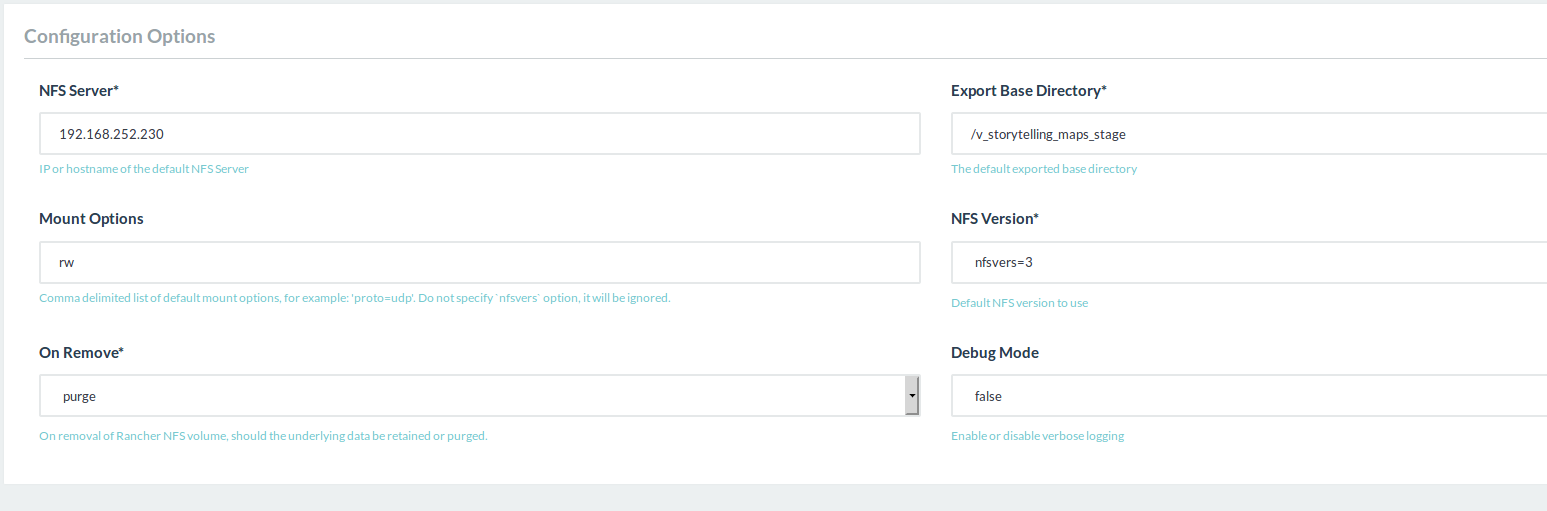

The plugin needs to be configured with the relevant information, meaning NFS Server and NFS Share (Export Base Directory):

The "Mount Options" allow the typical mount options which you would define with mount -t nfs -o ... on the cli.

"NFS Version" defaults to "nfsvers=4" in the plugin, but in my case the NFS share runs on a NFSv3 server.

The "On Remove" option is quickly overlooked but important: What should happen with your data if a NFS volume is removed? The default is set to "purge". You can chose "retain" to keep the data on the share.

Once this was finished, you will see a new service "nfs-driver" starting up in the Infrastructure stack:

Creating a storage volume

Nope, we can't configure the container service yet. There is first need to create a "volume" on that share. Only a volume can finally be mounted into a container, so let's do this.

To create the volume, click on Infrastructure -> Storage. This will show you the available storage drivers and any other volumes, if there are already. But in this case we create the first volume:

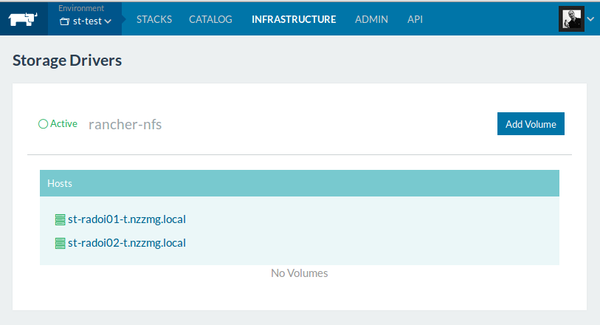

Rancher 1.6 Infrastructure Storage

A click on Add Volume will show a simple form with only two fields:

Rancher 1.6 Add Storage Volume

Name: Obviously the name of the volume. This must be a unique name across the whole Rancher environment.

Description: That's obvious, right?

After hitting Create, the screen should now show the just created volume and it will be shown as inactive. This means that this volume is not yet mounted by any container service.

Rancher 1.6 Storage Volume created

Mounting the volume in containers / services

Now to the magic: Mounting the volume in the containers. This is configured in the service of a container under the Volumes tab:

Rancher 1.6 Add Volume to Container Service

There's not much to fill into to the form, but the correct syntax is mandatory!


In this case we use the environmental-wide volume "map-test" (the name we gave the volume before) and mount it as /data inside the container(s) of that service. The final "ro" is an optional mount option for read-only (ro) or read-write (rw) permission on that volume. In this case I chose "ro" as a read-only volume. The container will therefore only be able to read data from /data.

After I hit the Upgrade button, the containers of that service were deployed - hopefully with the volume mounted.

Does it work?

As soon as I upgraded that particular service, I saw the status change in Infrastructure -> Storage; the volume turned active!

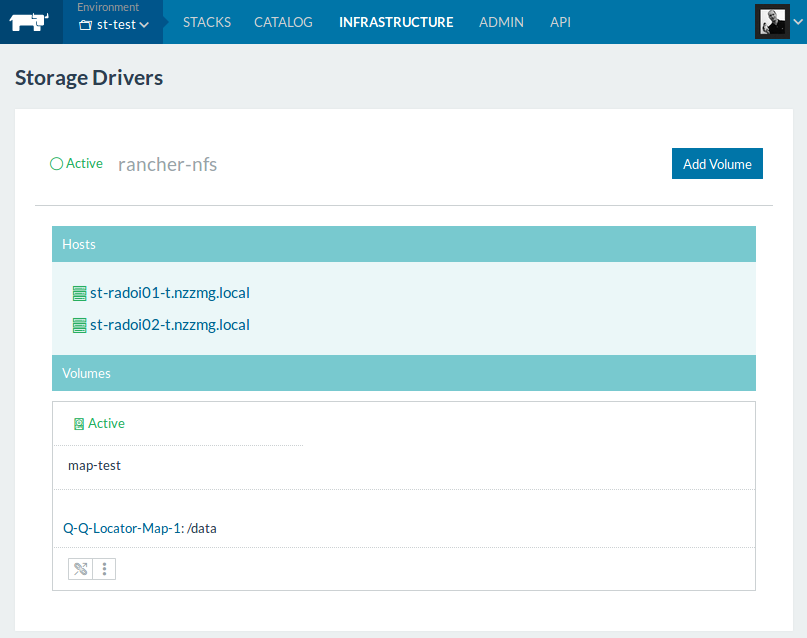

Rancher 1.6 Storage Volume active

It also shows which container (Q-Q-Locator-Map-1) and under which path (/data) the volume was mounted. Nice!

On the Docker host I can see the NFS mount appearing as well:

root@dockerhost1:~# mount| grep nfs on /var/lib/rancher/volumes/rancher-nfs/map-test type nfs (rw,relatime,vers=3,rsize=65536,wsize=65536,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=,mountvers=3,mountport=635,mountproto=udp,local_lock=none,addr= on /var/lib/rancher/volumes/rancher-nfs/map-test type nfs (rw,relatime,vers=3,rsize=65536,wsize=65536,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=,mountvers=3,mountport=635,mountproto=udp,local_lock=none,addr=

And how does it look inside the container?

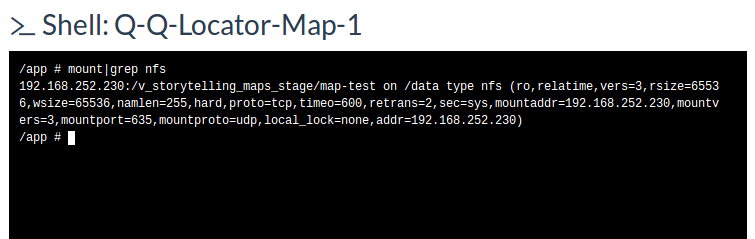

/app # mount|grep nfs on /data type nfs (ro,relatime,vers=3,rsize=65536,wsize=65536,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,mountaddr=,mountvers=3,mountport=635,mountproto=udp,local_lock=none,addr=
/app #

Rancher 1.6 NFS Share in container

Because I mounted the volume with the "ro" option, I shouldn't be able to create any files within the mount-path /data. Verifying:

Rancher 1.6 Docker Container NFS Share read only

VoilĂ , working as it should.

Writing rw and reading ro

Just to proof we're really on the correct share and the correct path and the container is able to read the data, I mounted the NFS share on the host again, as in the begin:

root@dockerhost1:~# mount -o rw,nfsvers=3 /tmp/claudio
root@dockerhost1:~# ll /tmp/claudio/
total 4
drwxr-xr-x 2 root root 4096 Jun 13 14:33 map-test

So here we can see a very important fact: The volume (map-test) is represented as a directory inside the NFS share! If I create a file outside this map-test folder, the container won't be able to see it.

But if I create the file inside the map-test, the container should be able to see it:

root@dockerhost1:~# touch /tmp/claudio/map-test/we-all-just-wanna-be-big-rockstars.txt

Inside the container:

/app # ls -la /data
total 12
drwxr-xr-x    2 root     root          4096 Jun 13 13:56 .
drwxr-xr-x   48 root     root          4096 Jun 13 12:35 ..
drwxrwxrwx    2 root     root          4096 Jun 13 08:08 .snapshot
-rw-r--r--    1 root     root             0 Jun 13 13:56 we-all-just-wanna-be-big-rockstars.txt

Yep, the file is here and can be read.


  • A NFS share cannot be directly mounted in the containers
  • A Docker volume plugin must first be installed from the Rancher catalog
  • A volume must be created using this nfs-driver
  • This volume can be mounted into the container(s), configured in the "Volumes" settings of a service
  • Each volume is represented as a directory inside the NFS share
